The Hidden Reason Your Curved Laser Engravings Look Distorted (And How Pros Fix It)

If you have ever tried to engrave a stainless steel tumbler or a curved wooden mug with a flat-bed laser engraver, you have probably ended up with something that looks nothing like your design. The edges are wavy. The text is stretched. Fine details vanish halfway through. Most people assume they calibrated something wrong. They did not. The problem is fundamental to how flat-bed diode lasers work on curved surfaces.

Understanding this is the difference between consistently beautiful results and frustrating trial-and-error. And once you know the fix, a whole new category of laser engraving projects opens up — particularly relevant as father day laser engraved gifts season approaches and makers look for ways to create high-margin personalized drinkware.

The Physics Behind the Distortion

Diode lasers like those in the L1 Pro 12W or M1s enclosed laser are divergence-type lasers. The beam starts narrow at the source and spreads as it travels. At the focal point — typically only 0.5mm of tolerance for a diode laser — the energy is concentrated enough to mark surfaces cleanly. Move even slightly away from that focal plane and the beam widens, energy drops, and marking becomes inconsistent.

When the laser head sweeps across a flat bed, the material surface stays at a fixed distance from the laser head. That distance equals your focal distance. Perfect. But place a cylindrical object — a tumbler, a mug, a vase — on that same flat bed, and the surface curves in and out of the focal plane as the laser travels across it. At the widest point of the curve, the surface may be right at focal distance. But as the surface curves away, the beam reaches the material before it reaches focus, spreading its energy across a wider area and creating shallow, distorted marks. The result is that characteristic wavy, inconsistent engraving on the sides of curved objects.

The Fix: Rotary Motion, Not Linear Sweeping

The solution professionals use is deceptively simple: instead of sweeping the laser across the object, rotate the object through the stationary laser beam. A rotary attachment — sometimes called a roller or chuck attachment — mounts to the laser bed and spins the cylindrical object at a controlled, steady rate while the laser fires from its fixed position.

Because the laser stays stationary and the object surface passes through the focal point at a constant radius, every part of the engraving receives the same focused energy. The beam hits the surface at exactly the right distance every single time. This is not a software fix or a calibration trick — it is a fundamentally different motion geometry that eliminates the root cause of curved-surface distortion.

Key Setup Details That Determine Success

Getting good results with a rotary attachment comes down to three practical details:

Axis alignment. The rotation axis must be parallel to the laser's travel direction. If the object wobbles or tilts as it spins, the focal distance will vary throughout each rotation, creating banding in the engraving. Most rotary attachments have adjustment mechanisms to fine-tune this alignment.

Spin speed for your engraving mode. Vector cutting on a rotary requires relatively fast rotation so the beam effectively cuts along the rotation axis. Raster engraving — the kind that produces detailed images and text — needs slower, more deliberate rotation to ensure each pass deposits energy consistently. Most rotary attachments have adjustable speed to accommodate both.

Diameter input. The software needs to know the object's diameter so it can calculate how fast to spin relative to the laser travel speed. Input the wrong diameter and your image gets stretched or compressed horizontally across the curved surface. This is where spending time with your software settings really pays off. The better laser software packages make diameter input intuitive, but it is a step that cannot be skipped.

Why This Matters for Laser Engraving Side Hustle Builders

The real value of a rotary attachment is that it unlocks an entirely different product category. Without one, you are largely limited to flat items — wood panels, leather patches, phone stands, coasters. With one, you can consistently engrave cylindrical objects: drinkware, vases, bottles, and irregularly shaped containers. This is particularly valuable for laser engraving business ideas targeting the personalized gift market.

For father day custom gift ideas laser cut projects specifically, a high-quality 20oz stainless steel tumbler is one of the highest-margin personalized items you can produce. It is durable, genuinely useful, and dads tend to actually use and display items that solve everyday problems. Engraving a set of matching tumblers or a custom flask for a dad who grills or camps can command serious premium pricing, especially when positioned as a handmade gift rather than a mass-produced item.

The same technique applies to mugs, wine glasses, vases, and even uniquely shaped containers like hand-carved wooden cups. Each opens a different niche within the broader personalized gift and laser engraving side hustle space.

The Rotary Attachment: One Upgrade, Entirely New Capability

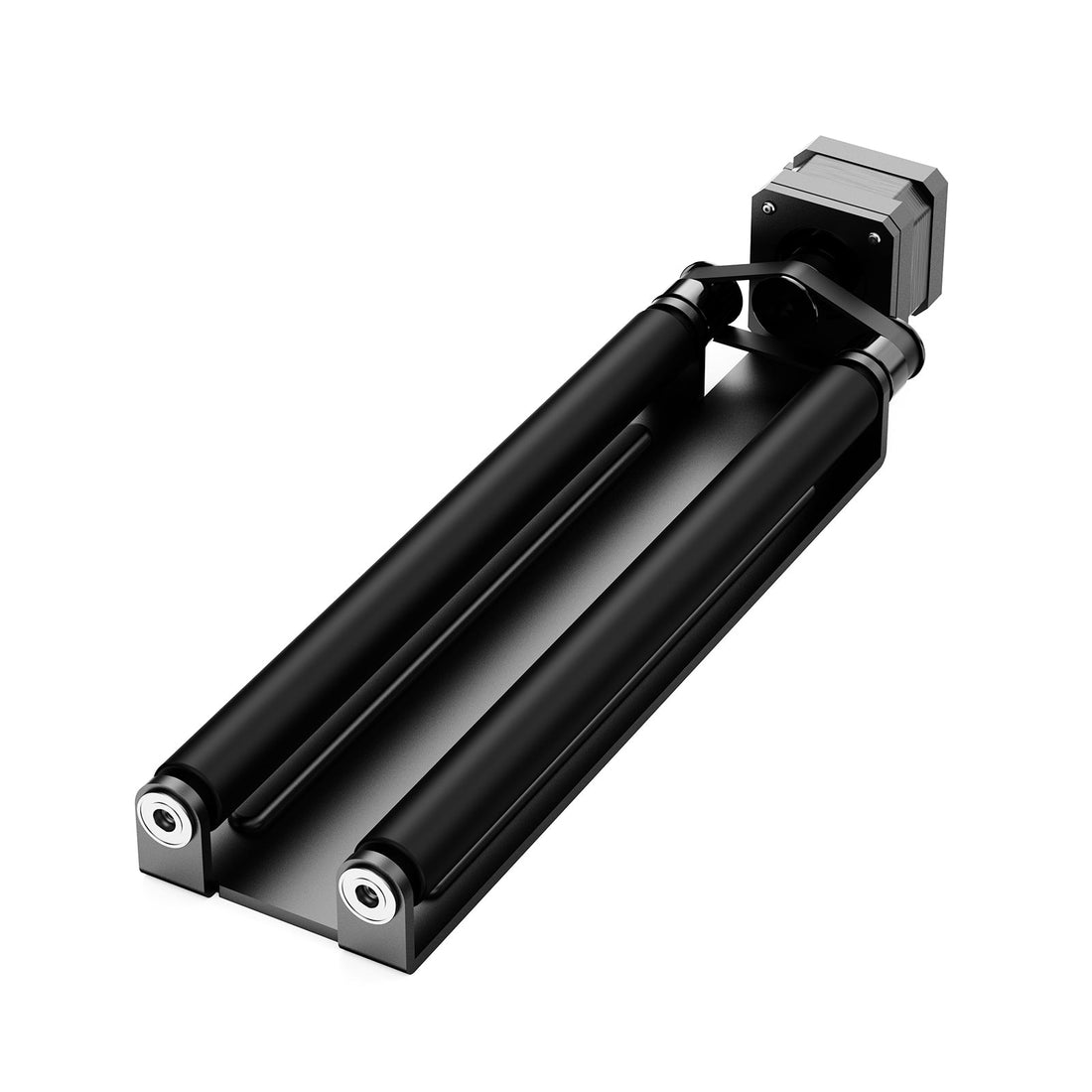

A rotary attachment is one of the highest-leverage upgrades you can add to a desktop laser setup. At around $59 for the LR1 rotary module, it costs a fraction of the machine itself yet opens up a whole new product axis. For anyone running a laser engraving side hustle from a garage or home workshop, it is one of the first accessories worth buying after the core machine.

The setup process takes 15 to 20 minutes the first time. After that, engraving on curved objects becomes routine. You align, input the diameter, and run. The learning curve is steep in the best way — once you understand why it works, you stop fighting the machine and start treating it like the precision tool it is.

If you have been avoiding curved-surface projects because the results embarrassed you, the rotary attachment is the fix hiding in plain sight. Your next father day laser engraved gifts project — or any cylindrical custom gift — deserves to look as clean as the rest of your work.

Ready to expand what your laser can make? Browse accessories and add-ons at Laservii to find the right rotary solution for your setup.
