Laservii L1 Pro 7W/12W Laser Engraver
🎃 Add both the engraver and your free gift to the cart. The discount applies automatically—no code needed!
Regular price
$139.00
Sale price
$139.00
Regular price
$299.00
Unit price
per
SAVE $160.00
Shipping calculated at checkout.
Couldn't load pickup availability
- BEST PRICES
- WELL TRUSTED
- EXPERT HELP
Laservii L1 Pro Laser Engraver
Breathing light design, providing decorationand visualisation of machine status
12000mm/min
Ultra-fast engraving
Four simple steps foreasy installation

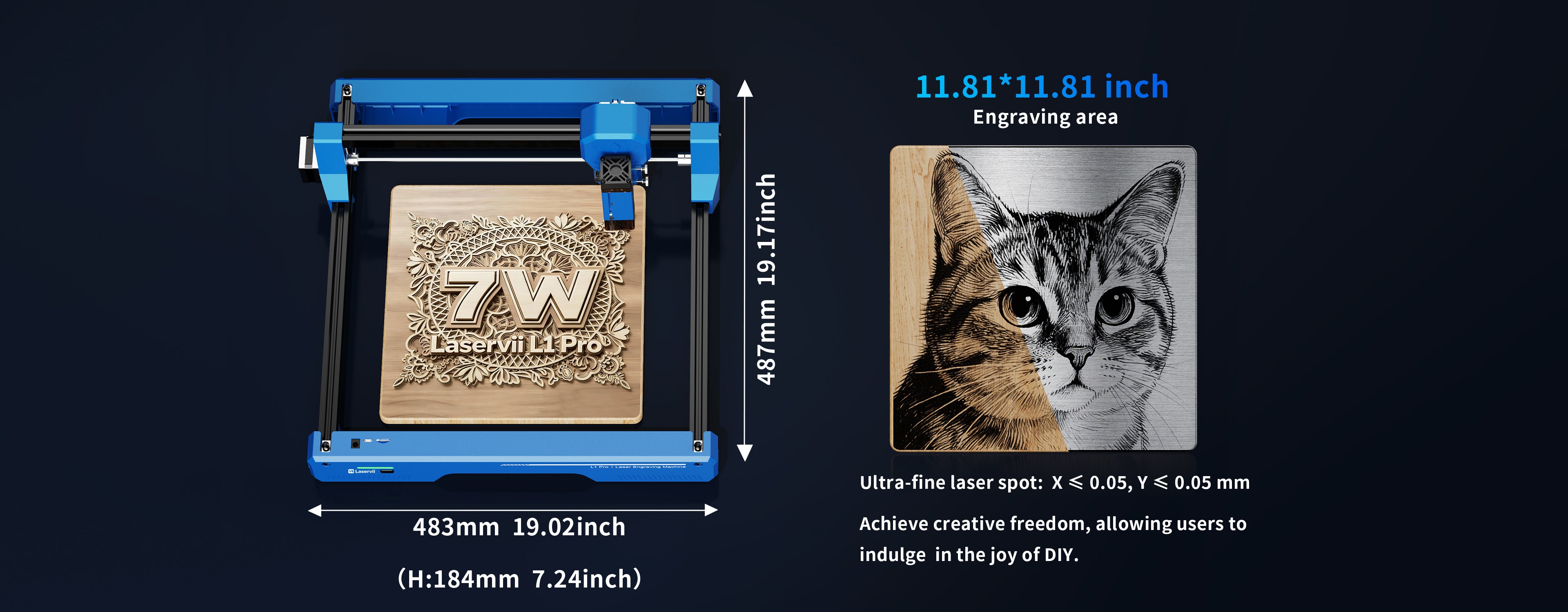

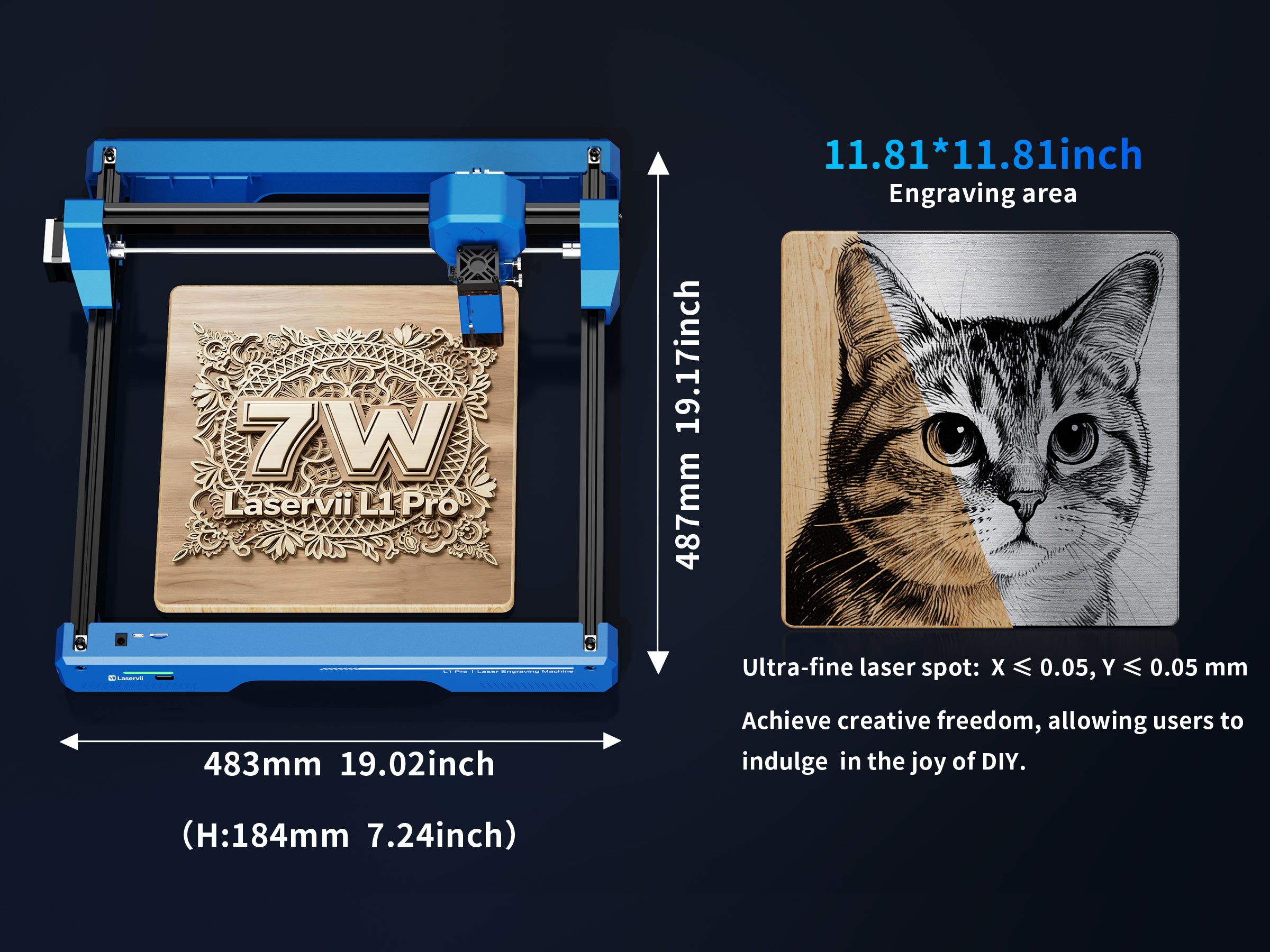

300x300mm Engraving area

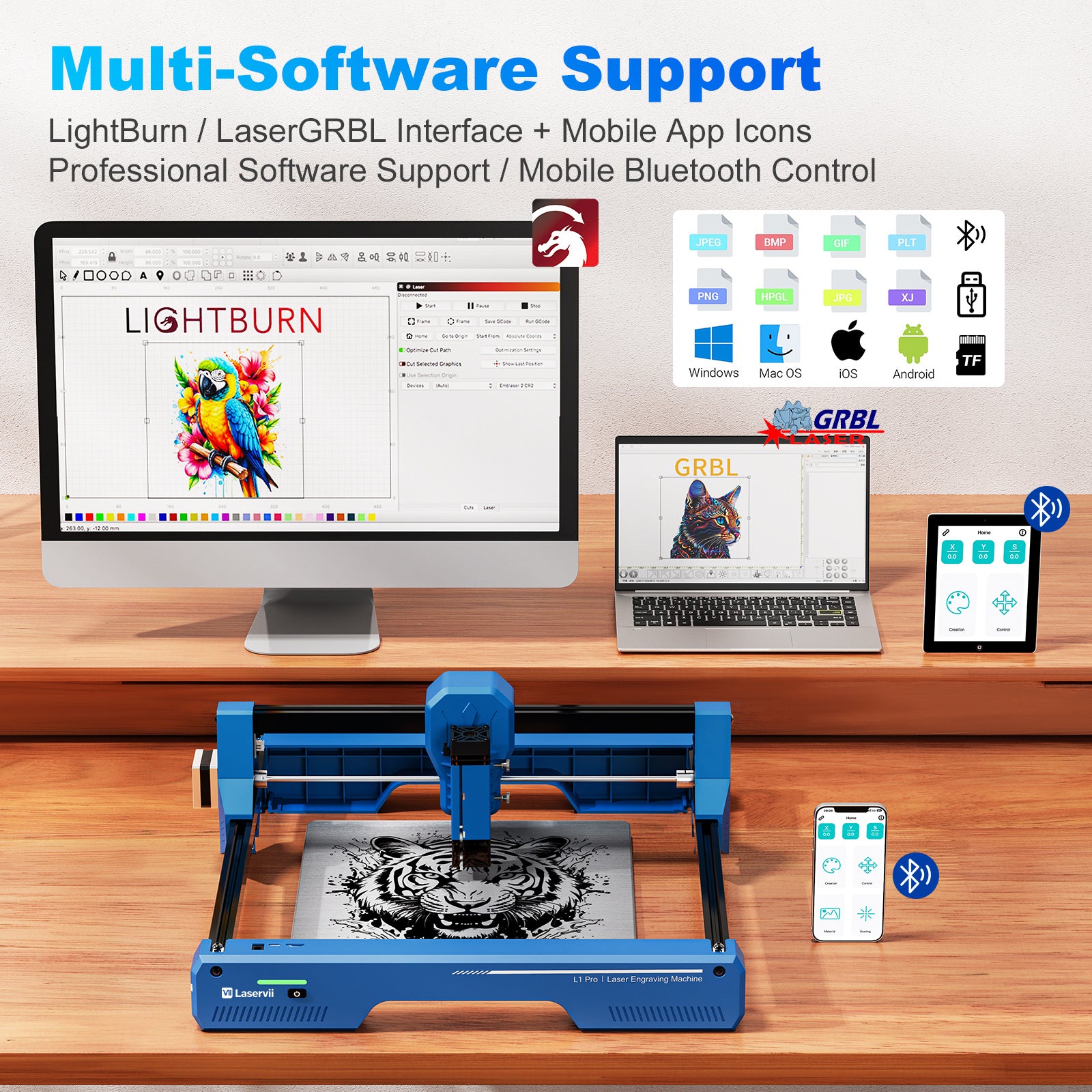

Compatible with professional laser engraving software such as LightBurn and LaserGRBL
7W / 12W Laser Head
Discover more creative inspiration
The Ultimate Creation Exceptional Value
Laser power
7W/12W
Meet entry-level requirements
Engraving speed
12000mm/min
Significant time savings in carving
Engraving area
11.81*11.81 inch
Greater creative scope
Engraving precision
0.05*0.05mm
Ultra-small laser spot
Variety of accessory options

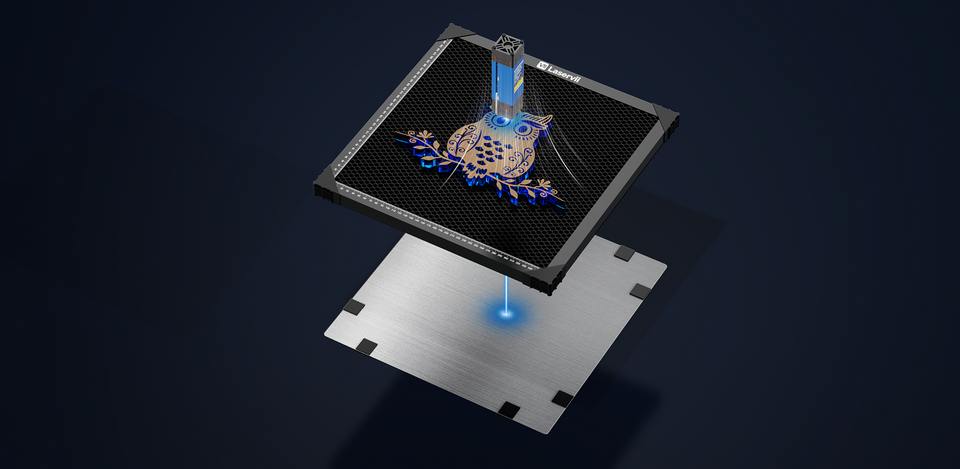

Honeycomb Panel

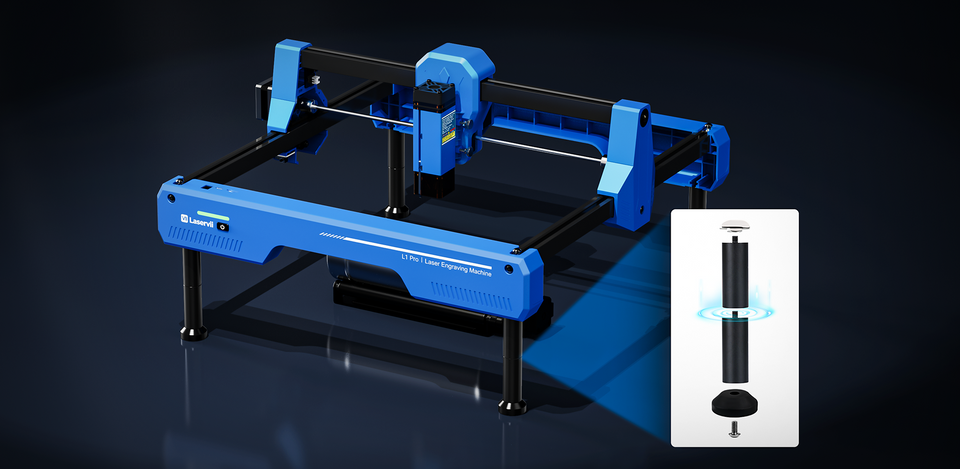

Elevation Column

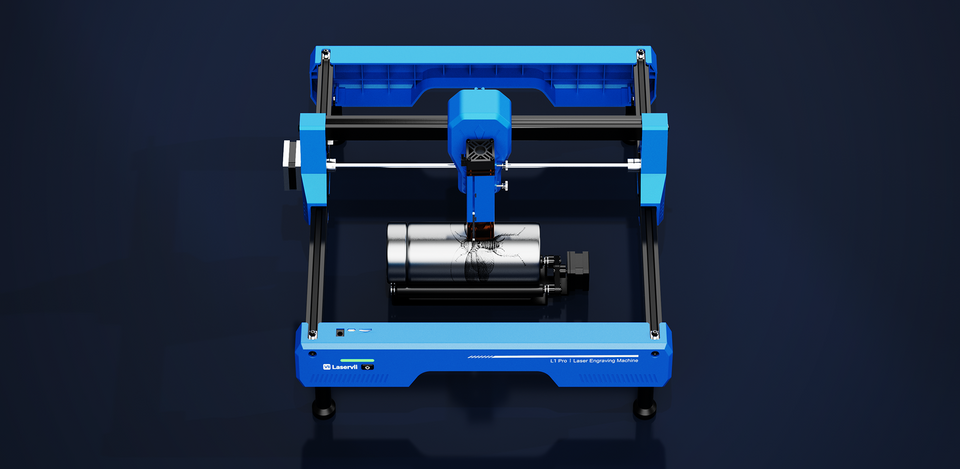

Rotary Module

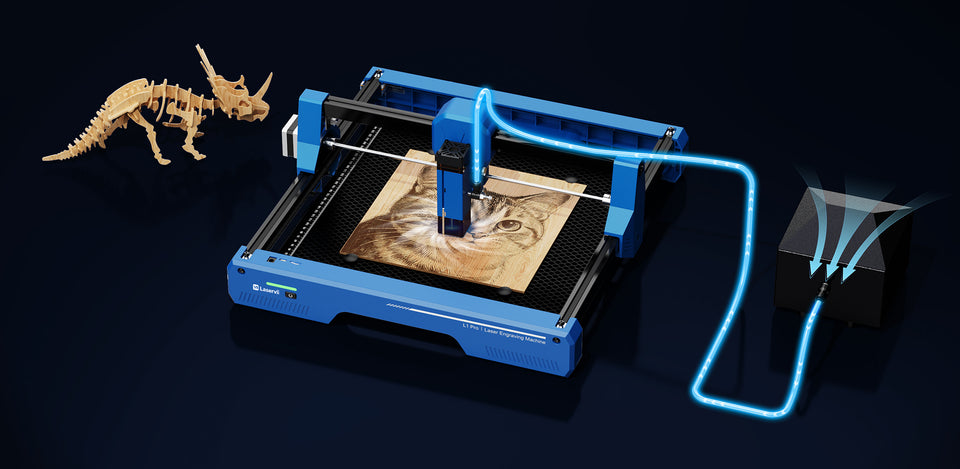

Air Assist Pump
Diverse Accessories Simplify Creations
-
-
Honeycomb Panel
-
Air Assist Pump
-
Rotary Module
-
Engraver Risers
Product Specifications
Frame composition: Plastic + aluminium alloy
Colour combination: blue + black
Working dimensions: 11.81*11.81 inch
Motor: NEMA 17 Stepper Motor
Engraving software: LightBurn, LaserGRBL, etc.
Input voltage: 12V
Wavelength: 455 ± 5 nm
Mobile app control: Supported
Drive method: Synchronous belt + synchronous pulley drive
Engraving materials: Wood panels, plastic, paper, leather, bamboo, foam board, lacqueredmetal, foam board, acrylic
Product Comparison
Product
L1 Pro
From
$139.00
L1 Mini
From
$89.00
L1 Plus
From
$369.00
Laser Power
7W/12W
3W
24W
Working Area
300×300mm
150×150mm
420×420mm
Product size
483×487×184mm
296x277x170mm
615x630x180mm
Packaging size
500×240×170mm
345×312×125mm
655×245×170mm
Product Weight
2.5KG
1.5KG
4.4KG
Maximum Speed
12000mm/min
12000mm/min
12000mm/min
Connection Method
Bluetooth/APP/TF Card/Type C
Bluetooth/APP/TF Card/Type C
Bluetooth/APP/TF Card/Type C
Supported Formats
JPG, SVG, PNG, BMP, G-code, CAD, AI,CDR, DWG
JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG
JPG, SVG, PNG, BMP, G-code, CAD, AI,CDR, DWG
Supported Materials
Wood, plastic, paper, leather, bamboo, foam paper, stainless steel, PVC foam board, acrylic, etc.
Wood, plastic, paper, leather, bamboo, foam paper, PVC foam board, acrylic, etc.
Plywood, medium-density fiberboard,solid wood boards, paper, painted metal,kraft paper, leather, plastics, bamboo,etc.
See the Difference
👉🏻
L1 Pro 7W
L1 Pro 12W
Basic Specifications
Forming Technology
Laser Engraving
Laser Engraving
Main Body Color
Black + Blue
Black + Blue
Main Body Material
Aluminum Alloy + Injection Molded Parts
Aluminum Alloy + Injection Molded Parts
Product Dimensions
483×487×184mm
483×487×184mm
Working Area
300×300mm
300×300mm
Engraving Accuracy
±0.15mm
±0.15mm
Engraving / Compatible Materials
Wood board, plastic, paper, leather, bamboo, foam paper, stainless steel, snowboard, acrylic
Wood board, plastic, paper, leather, bamboo, foam paper, stainless steel, snowboard, acrylic
Net Weight
2.5KG
2.5KG
Material Weight
4.1kg
4.1kg
Package Weight
3.5KG (Package Weight)
3.5KG (Package Weight)
Inner Package Dimensions
490×230×155mm
490×230×155mm
Outer Package Dimensions
500×240×170mm
655×245×170mm
Electrical Parameters
Power Supply Method
Integrated Adapter
Integrated Adapter
Adapter Specifications
100–240V~50/60Hz 0.8A, 12V⎓3A
100–240V~50/60Hz 0.8A, 12V⎓5A
Input Voltage
12V
12V
Power Rating
36W
60W
Mechanical Parameters
X-axis Motor
42 Stepper Motor 17HS4023
42 Stepper Motor 17HS4023
Y-axis Motor
42 Stepper Motor 17HS3401S (D-axis)
42 Stepper Motor 17HS3401S (D-axis)
Timing Belt
GT2-6mm
GT2-6mm
X/Y Axis Positioning Accuracy
±0.1mm
±0.1mm
Max Engraving Speed
12000mm/min
12000mm/min
Standard Acceleration
300mm/s²
300mm/s²
Homing Position
Bottom-left of machine
Bottom-left of machine
Laser Module Parameters
Laser Power
7W ±10% (Continuous Output)
12W ±10% (Continuous Output)
Laser Property
Blue Light
Blue Light
Spot Shape
Near-square Spot
Near-square Spot
Spot Size
0.05×0.05mm
0.05×0.08mm
Focal Distance
30.5±0.5mm
30.5±0.5mm
Lens Focal Length
40mm
35mm
Wavelength
450±5nm
450±5nm
Packaging & Optional Accessories
Compatible File Formats
lbrn、lbrn2、ai、svg、pdf、dxf、plt、hpgl、png、jpg、jpeg、bmp、gif、tif、tiff、tga、webp、gcode、nc、gc、mage、rd、sc、scpro2
lbrn、lbrn2、ai、svg、pdf、dxf、plt、hpgl、png、jpg、jpeg、bmp、gif、tif、tiff、tga、webp、gcode、nc、gc、mage、rd、sc、scpro2
Software License
Wecarver, LaserMakerSpasce, LightBurn, LaserGRBL, etc.
Wecarver, LaserMakerSpasce, LightBurn, LaserGRBL, etc.
Safety & Compliance
Certifications / standards listed
CE-MD、CE-RED NB、FCC SDOC、FCC ID、60825-1、FDA、UL62368-1、CAN/CSA 62368-1
CE-MD、CE-RED NB、FCC SDOC、FCC ID、60825-1、FDA、UL62368-1、CAN/CSA 62368-1
